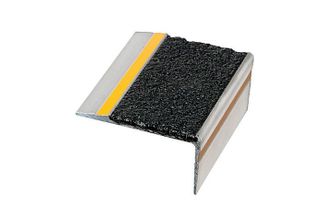

GSA2N, GSA4N Grit Surface Aluminum Step Nosing

GSA2N, GSA4N Grit Surface Aluminum Step Nosing
Click to Enlarge
Item#GSAN
Retail Price:$28.30
Our Price:$27.00
Select depth & length:
Select insert color:
black gs
brown gs
blue gs
gray gs
green gs
red gs
yellow gs
Countersunk holes to install with screws?:
+
Total Price:
Add Related Items
400 Neoprene Contact Cement- for stair treads & risers
Retail Price:$31.00
Our Price:$25.00
Select Size:
+
Total Selected:

Product Description

<>ul
  • This 2-1/2 or 3-15/16" deep nosing is made from the same material as our Grit-Surface Aluminum Treads.
  • The GSA2N front abrasive edge is 1-3/4 deep with a 3/4" back edge and 1 1/4" deep nose.
  • The GSA4N front abrasive edge is 1 deep with a 2-7/8" back edge and 1 1/8" deep nose.
  • Both the nose and tapered edge have a 1/4" wide reflective yellow tape strip for additional safety.
  • The nosing is available in abrasive colors of Black, Brown, Blue, Gray, Green, Red or Yellow.
  • Nosing is available solid (for glue-down applications) or with countersunk holes (for screw-down applications) every 12 inches.
  • Product lead time may be up to 4 weeks; so please call to expedite.

  • SPECIFICATIONS:

    • Furnish and install Musson Grit-Surface aluminum stair treads 3/16" thick, 7-1/2" (GSA75), 9" (GSA9) or 11" (GSA11) deep.
    • Tread surface shall have aluminum oxide abrasives permanently bonded to a heat treated aluminum nose stair tread.
    • The front grit surface of the tread shall be in _______ color; the back surface shall be in _______ color
    • Colors to be separated by an aluminum rib.
    • Select colors from standard grit colors of black, brown, blue, gray, green, red or yellow.
    • Treads can be supplied with two countersunk holes every 12" for screw down installation, or without holes
    • Installation with #400 Neoprene Contact Cement.
